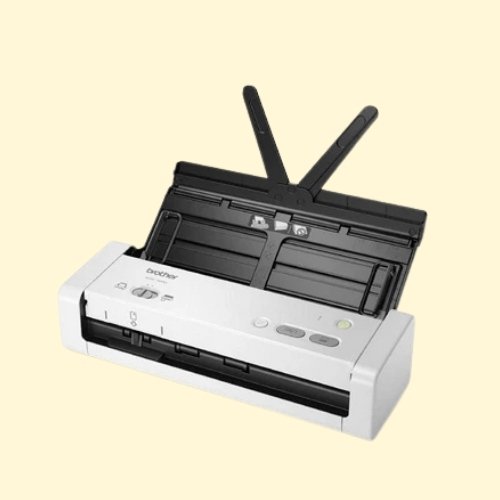

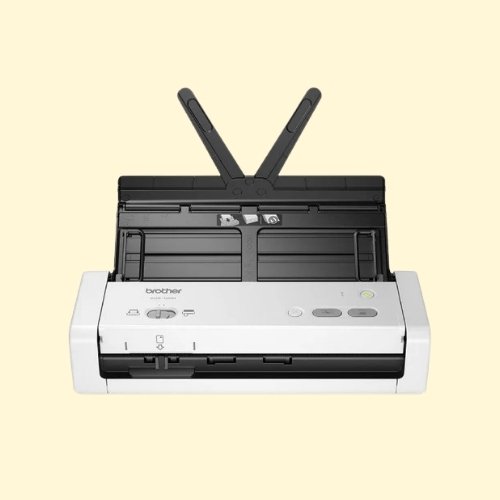

Make everyday document scanning simple with the ADS-1200 compact document scanner.With USB 3.0 Bus power, there’s no need for mains power. Connect the ADS-1200 to a laptop with a USB 3.0 cable and you now have a portable document scanner so you can scan documents when you need. The desktop-friendly sized scanner, comes with powerful paper-handling. With a sheetfed Automatic Document Feeder (ADF), 2-sided documents to multi-page contracts and plastic ID cards, can all be scanned with ease.
- 25ppm/50ipm, 2-sided colour scan speed
- 20 sheet Automatic Document Feeder (ADF)
- Portable with USB 3.0 Bus power
- Dedicated plastic ID card slot
- Scan to PDF, file, email and USB host
- Industry leading Nuance Power PDF editing software
Portable scanning
Designed with flexibility in mind, the portable sheetfed ADS-1200 can be powered using USB connected to a laptop. You can now take your scanner with you, scanning where it’s most convenient.
Practical and compact
The space-saving ADS-1200 compact document scanner is ideal when space is limited. Measuring slightly wider than a sheet of A4 paper, you can free-up desk space and reduce clutter
High performance
Simply put your documents into the ADF (Automatic Document Feeder) and let it do the hard work for you. Scanning up to 25 sheets per minute, your documents can be saved quickly to PC, email and USB host.
Flexible media
Scanning documents is quick and easy with the sheetfed ADS-1200. With a dedicated plastic ID card slot, ID cards or documents are fed smoothly into the scanner, so your records can be easily kept up to date.
Basic Specs
- SCANNING SPEED: 25ppm/50ipm
- DOCUMENT SIZE – MULTIPLE PAPERS – WIDTH: 51 mm to 215.9 mm
- DOCUMENT SIZE – MULTIPLE PAPERS – LENGTH: 70 mm to 297 mm
- DOCUMENT SIZE – SINGLE PAPER – WIDTH: 51 mm to 215.9 mm
- DOCUMENT SIZE – SINGLE PAPER – LENGTH: 70 mm to 297 mm
- COLOUR / BLACK: Yes/Yes
- DUPLEX SCAN: Yes
- COLOR DEPTH – INPUT: 48-bit colour processing
- COLOR DEPTH – OUTPUT: 24-bit colour processing
- RESOLUTION – OPTICAL: Max. 600 dpi × 600 dpi
- RESOLUTION – INTERPOLATED: Max. 1,200 dpi × 1,200 dpi
- SCANNING WIDTH: Max.216 mm
- GRAYSCALE: 256 levels
- PRODUCT DIMENSIONS (WIDTH X DEPTH X HEIGHT): 300 mm x 103 mm x 83 mm
- WARRANTY: 1 Year
General
- MEMORY CAPACITY: SDRAM: 256 MB
- ADF (AUTOMATIC DOCUMENT FEEDER): Up to 20 sheets (Paper: 80 g/m²)
- WEIGHT: 1.4 kg
Operation
- POWER SOURCE: AC: 220 – 240 V, 50/60 Hz
- POWER CONSUMPTION – SCANNING: Approx. 8W
- POWER CONSUMPTION – READY: Approx. 3.2W
- POWER CONSUMPTION – POWER SAVING / DEEP SLEEP: Approx. 1.3W
- POWER CONSUMPTION – POWER OFF: Approx. 0.1W
- TEMPERATURE – OPERATING: 5°C to 35°C
- HUMIDITY – OPERATING: 20% to 80%
- HUMIDITY – STORAGE: 10% to 90%
Compliance
- TWAIN COMPLIANT – WINDOWS®: Windows 7 SP1/8/8.1/10/Server2008 R2 SP1/2012/2012 R2/2016
- TWAIN COMPLIANT – MAC OS: MacOS v10.11.6/10.12x/10.13x
- WIA COMPLIANT – WINDOWS®: Windows® 7 (SP1) / Windows® 8 / Windows® 8.1 / Windows® 10
- ICA COMPLIANT – MAC OS: macOS v10.11.6 / 10.12.x / 10.13.x
Interface
- USB: USB 2.0
Supplies:
PUR-2001C: 100,000 sheets(A4 or Letter) or 1 year
SP-2001C: 10,000 sheets(A4 or Letter) or 1 year
