- Expertly designed with businesses in mind, our scanners help to streamline business processes whilst providing an effortless, user-friendly experience. They enable you to intelligently capture and optimize the contents of your documents and easily collaborate with colleagues.

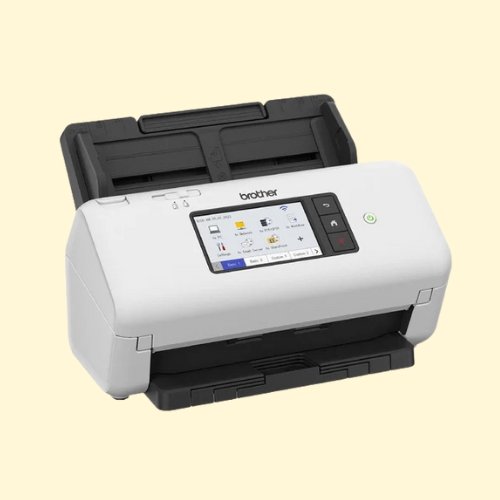

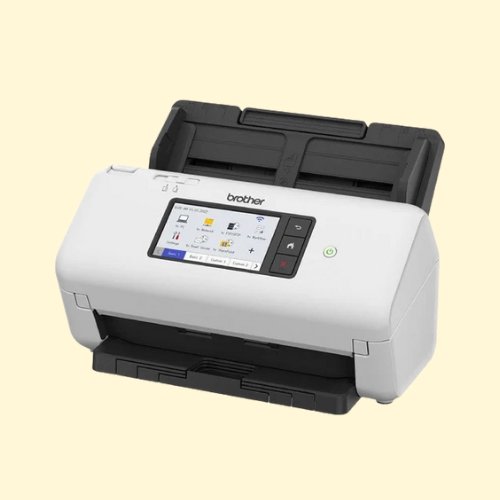

- With an in-built Ultrasonic Multifeed Sensor to eliminate misfeeds, the ADS-4700W also has a large 80 sheet ADF capacity and rapidly scans up to 40 pages per minute.
- Set up a dedicated user interface with one-touch scanning and the ability to add shortcuts to frequently used destinations. You can also use an optional external cardreader to make the scanning process even easier. Just tap the card and add your documents into the ADF to automatically and securely capture the information on the page.
- With USB3.0, USB host, network and wireless connectivity, you can securely scan documents and share with colleagues, without the need for a PC.
- Enjoy effortless and impressive image capture and processing – from easily referencing and locating scanned pages with the digital imprinter, to optimising image quality through the automatic vertical streaks and moiré reduction tools.
Technical Specification
Basic Specs
-
SCANNING SPEED: 40 ppm
-
COLOUR / BLACK: Yes
-
DUPLEX SCAN: Yes
-
COLOR DEPTH – INPUT: 48-bit colour processing
-
COLOR DEPTH – OUTPUT: 24-bit colour processing
-
RESOLUTION – OPTICAL: Up to 600 dpi × 600 dpi
-
RESOLUTION – INTERPOLATED: Up to 1,200 dpi × 1,200 dpi
-
SCANNING WIDTH: Up to 215.9 mm
-
GRAYSCALE: 256 levels
-
PRODUCT DIMENSIONS (WIDTH X DEPTH X HEIGHT): 299.5 mm x 190.5 mm x 215.9 mm
General
-
MEMORY CAPACITY: 512MB
-
ADF (AUTOMATIC DOCUMENT FEEDER): Up to 80 sheets (Paper: 20 lb (80 g/m²) A4/Letter size)
-
WEIGHT: 2.75 kg
Display
-
TOUCHSCREEN LCD (LIQUID CRYSTAL DISPLAY): 4.3 in. (109.2 mm) TFT colour LCD screen
Operation
-
POWER CONSUMPTION – SCANNING: Approx. 26W
-
POWER CONSUMPTION – READY: Approx.8.6W
-
POWER CONSUMPTION – POWER SAVING / DEEP SLEEP: Approx. 1.7W
-
POWER CONSUMPTION – POWER OFF: Approx. 0.1W
-
TEMPERATURE – OPERATING: 5°C to 35°C
-
HUMIDITY – OPERATING: 20% to 80%
Compliance
-
TWAIN COMPLIANT – WINDOWS®: Windows Server 2012 / Windows Server 2012 R2 / Windows Server 2016 / Windows Server 2019
-
TWAIN COMPLIANT – MAC OS: macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
-
WIA COMPLIANT – WINDOWS®: Windows 7 (SP1) / Windows 8.1 / Windows 10
-
ICA COMPLIANT – MAC OS: macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
-
ISISTM COMPLIANT – WINDOWS®: Windows 7 (SP1) / Windows 8.1 / Windows 10
-
HUMIDITY – STORAGE: 10% to 90%
Interface
-
USB: USB 3.0
-
LAN: 10Base-T/100Base-TX
-
WIRELESS LAN: 2.4GHz, Infrastructure Mode : IEEE 802.11b/g/n, Wi-Fi Direct : 802.11g/n
Network
-
WIRELESS NETWORK SECURITY: WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), WPA3
-
SETUP SUPPORT UTILITY: WPS, WLAN Assistant
