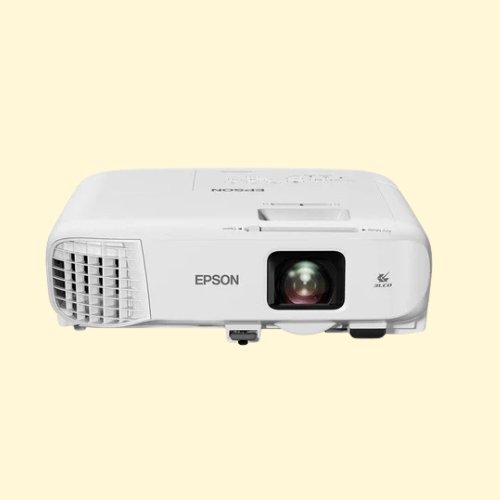

The EB-E20 offers a very versatile proposition that can be mounted just about anywhere. Meanwhile long lamp life and trusted Epson durability offer peace of mind and minimal maintenance.
Bright, vivid content on a large scalable screen
Enjoy large scale presentations with crisp, clear text, as well as compelling imagery and video content, on screen sizes up to 350 inches. 3,400-lumen performance combines with a high contrast ratio of 15,000:1 to offer outstanding visual performance, even in well-lit rooms.
Years of uninterrupted meetings
With a lamp life of up to 12,000 hours in Eco mode.
Easy to use
Built-in lens shutter that allows easy restart and shut down. User friendly home screen that enables you to confidently and easily connect your device to the projector.
Multiple inputs on one display with audio
Display size matters; scalable up to 350” to enhance your viewing experience and ensure that content shown is not too small. That way everyone in your meeting has the same opportunities to share and engage.
High quality sound
This projector has a built-in 5W speaker to allow audio content to be heard clearly without the need for separate external speakers.
Key Features:
- High-quality bright images 3LCD technology and equally high White and Colour Light Output
- Portable Small and light enough to be moved easily and used in multiple rooms
- High quality sound Built-in 5W speaker for crisp, clear sound
- Low total cost of ownership Lamp life up to 12,000 hours in Eco mode
- Versatile and flexible control Project from many sources with HDMI
Technical Specification:
Technology:
- Projection System: 3LCD Technology, RGB liquid crystal shutter
- LCD Panel: 0.55 inch with C2 Fine
Image:
- Color Light Output: 3,400 Lumen- 2,200 Lumen (economy) In accordance with IDMS15.4
- White Light Output: 3,400 Lumen – 2,200 Lumen (economy) In accordance with ISO 21118:2020
- Resolution: XGA
- Aspect Ratio: 4:3
- Contrast Ratio: 15,000 : 1
- Light Source: Lamp
- Lamp: UHE, 210 W, 6,000 h durability, 12,000 h durability (economy mode)
- Keystone Correction: Manual vertical: ± 30 °, Manual horizontal ± 30 °
- Color Video processing: 10 Bits
- 2D Vertical Refresh rate: 100 Hz – 120 Hz
- Color Reproduction: Upto 1.07 billion colours
Optical:
- Throw Ratio: 1.44 – 1.95:1
- Zoom: Digital, Factor: 1 – 1.35
- Screen Size: 30 inches – 350 inches
- Projection Distance Wide/ Tele: 1.76 m ( 60 inch scree
- Projection Lens F Number: 1.44
- Projection Lens Focal Length: 16.7 mm
- Projection Lens Focus: manual
- Offset: 8:1
Connectivity:
- USB Display Function: 2 in 1: Image/ Sound
- Interface: RS-232C, VGA in (2x), VGA out, HDMI in, Composite in, Jack plug out, Jack plug in (2x), Cinch audio out, USB 2.0
- Epson iProjection App: Ad-Hoc / Infrastructure
Advanced Features:
- Security: Kensington lock, Control panel lock, Security cable hole, Password protection
- 2D Color Modes: Dynamic, Cinema, Presentation, sRGB, Blackboard
- Other Features: AV Mute Slide, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, OSD copy function, Quick Corner, Split-Screen-Function
- Video Color Modes: Blackboard, Dynamic, Presentation, sRGB, Theatre
General:
- Power Consumption: 327 Watt, 225 Watt (economy), 0.3 Watt (standby), On mode power consumption as defined in JBMS-84 286 Watt
- Supply Voltage: AC 100 V – 240 V, 50 Hz – 60 Hz
- Product Dimension: 309 x 282 x 87 mm (Width x Depth x Height)
- Product Weight: 2.7kg
- Noise Level: Normal: 37 dB (A) – Economy: 28 dB (A)
- Supported Temperature: Operation 5° C – 40° C, Storage 10° C – 60° C
- Options: Air filter, Ceiling mount, Document camera, External Speaker, Safety wire set, Soft carry case, Spare lamp, Suspension adapter, WP System – ELPWP20, Wireless transmitter – ELPWT01
- Loudspeaker: 5 watt
