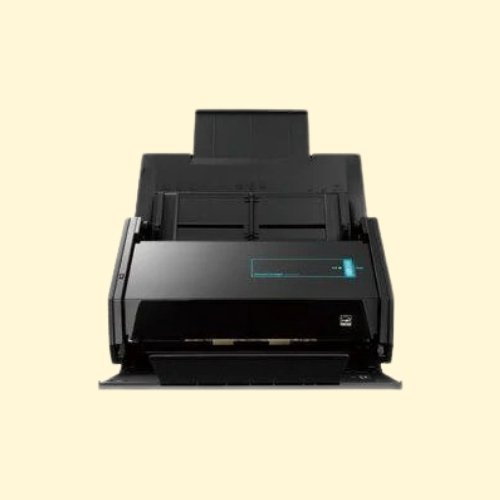

FUJITSU Image Scanner ScanSnap iX500
The ScanSnap iX500 provides PC and Mac users with an effective way to greatly reduce paper clutter, storage space, and security risks associated with unmanaged paperwork at home or the office. For even greater accessibility and usefulness, users can now scan wirelessly to a PC or Mac as well as iOS or Android mobile devices.
● One-touch scanning
● Scan wirelessly to PC, Mac, iOS or Android mobile devices
● Blazing 25ppm colour scanning
● 50 sheets Automatic Document Feeder (ADF)
● Built-in GI microprocessor
● An advanced paper feeding system
● Best experience with ScanSnap Home
Scan to:
● Searchable PDF
● JPEG
● Word (editable)
● Excel (editable)
● Business Cards
● Mobile
| SPECIFICATIONS | |
| Brand | FUJITSU |
| Type | Image Scanner |
| Model | iX500 |
| Part Number | PA03656-B301 |
| Product Quantity | 1 |
| Scanner Type | Automatic Document Feeder (ADF), Duplex | |||||
|---|---|---|---|---|---|---|
| Scanning Modes | Color, Grayscale, Monochrome, Automatic (Color / Grayscale / Monochrome detection(3)) | |||||
| Image Sensor | CIS (Contact Image Sensor) x 2 (front / back) | |||||
| Light Source | 3 color LED (Red / Green / Blue) | |||||
| Optical Resolution | 600 dpi | |||||
| Scanning Speed (A4 portrait)(1) | Auto Mode(2) | Simplex / Duplex: 25 ppm | ||||
| Normal Mode | Simplex / Duplex: 25 ppm (Color / Grayscale: 150 dpi, Monochrome: 300 dpi) | |||||
| Better Mode | Simplex / Duplex: 25 ppm (Color / Grayscale: 200 dpi, Monochrome: 400 dpi) | |||||
| Best Mode | Simplex / Duplex: 25 ppm (Color / Grayscale: 300 dpi, Monochrome: 600 dpi) | |||||
| Excellent Mode(3) | Simplex / Duplex: 7 ppm (Color / Grayscale: 600 dpi, Monochrome: 1200 dpi) | |||||
| Document Size | Normal Mode | Maximum: 216 x 360 mm (8.5 x 14.17 in.) 279.4 x 431.8 mm (11 x 17 in.) with Carrier Sheet Minmum: 50.8 x 50.8 mm (2 x 2 in.) |
||||
| Long Paper Scanning(3)(4) | 863 mm (34 in.) | |||||
| Multifeed Detection | Overlap detection (Ultrasonic sensor), Length detection | |||||
| Paper Weight (Thickness) | 40 to 209 g/m2 (11 lb to 56 lb) A8 or less: 127 to 209 g/m2 (34 to 56 lb) Cards: 0.76 mm or less (Includes embossed cards in landscape orientation) |
|||||
| Paper Chute Capacity(5) | 50 sheets (A4, 80 g/m2 or 20 lb) | |||||
| Interface | USB | USB 3.0 / USB 2.0 / USB 1.1(6) | ||||
| Wi-Fi | IEEE802.11b / IEEE802.11g / IEEE802.11n Frequency band(7): 2.4 GHz |
|||||
| Wi-Fi Interface | Connection Mode | Access Point Connect Mode (Infrastructure mode) | ||||
| Communication Distance(8) | Indoors 50 m (Recommended: indoors within 25 m) | |||||
| Security | WEP (64bit / 128bit), WPA (TKIP / AES), WPA2 (AES), WPA-PSK (TKIP / AES), WPA2-PSK (AES) | |||||
| Easy Installation | WPS2.0 (Button / PIN code) | |||||
| Power Requirement | AC 100 to 240 V, 50 / 60 Hz | |||||
| Power Consumption | Operating Mode | 20 W or less | ||||
| Sleep Mode | USB connected: 1.6 W or less Wi-Fi connected: 2.5 W or less |
|||||
| Auto Standby (Off) Mode | Less than 0.4 W | |||||
| Operation Environment | Temperature | 5 to 35 °C (41 to 95 °F) | ||||
| Relative Humidity | 20 to 80 % (Non-condensing) | |||||
| Dimensions (W x D x H)(9) | 292 x 159 x 168 mm (11.5 x 6.1 x 6.6 in.) | |||||
| Device Weight | 3.0 kg (6.62 lb.) | |||||
| Driver | ScanSnap specific driver · Windows®: Does not support TWAIN/ISIS® · Mac OS: Does not support TWAIN |
|||||
| Environmental Compliance | ENERGY STAR® / RoHS | |||||
| Inbox Contents | ||||||
