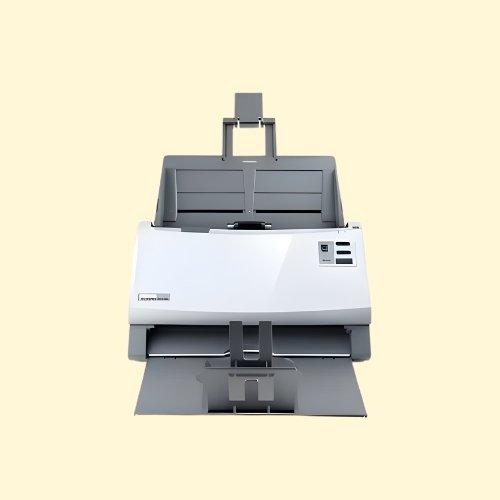

The Plustek SmartOffice PS3180U is an 80-page per minute, duplex color document scanner that is not only fast, but also reliable and cost effective. The automatic refinement of images and ultrasonic mis-feed detection ensures all of your important documents are accurately scanned. The PS3180U has one of the lowest Total Cost of Ownerships (TCO) of any high-speed document scanner. TCO is 40% less than other scanners in the 60-80 ppm segment.
Key Features:
- Duplex Scanning: Scan both sides of a document simultaneously, saving time and ensuring complete data capture.
- High-Speed Scanning: Achieve speeds of up to 80 pages per minute (ppm) and 160 images per minute (ipm) in both color and black & white modes at 300 dpi.
- Versatile Paper Handling: The ADF can accommodate up to 100 sheets of A4 paper, 30 business cards, and plastic cards up to 1.2 mm thick.
- Advanced Image Processing: Features like auto-rotate, blank page removal, and image compression ensure high-quality scans every time.
- Ultrasonic Multi-Feed Detection: Prevents double-feeding and ensures accurate scanning of each document.
- Robust Daily Duty Cycle: Designed to handle up to 8,000 sheets per day, making it perfect for high-volume scanning environments.
- TWAIN and WIA Compatibility: Easily integrate with various document management and imaging applications.
Specifications:
- Image Sensor: CIS x 2 (Duplex Scanner)
- Light Source: LED
- Optical Resolution: 600 dpi
- Hardware Resolution: 600 x 1200 dpi
- Scan Modes
Color: 48-bit input, 24-bit output
Grayscale: 16-bit input, 8-bit output
B/W: 1-bit
- Scanning Speed
80 ppm/ 160 ipm (Grayscale/B&W mode, 200 dpi, A4 Portrait)
80 ppm/ 160 ipm (Grayscale/B&W mode, 300 dpi, A4 Portrait)
45 ppm/ 90 ipm (Color mode, 200 dpi, A4 Portrait)
30 ppm/ 60 ipm (Color mode, 300 dpi, A4 Portrait)
- Scanning Area (W x L)
4 Buttons: Up, Down, Scan, Standby
9 function keys are all customizable.
- Action Button
4 Buttons: Up, Down, Scan, Standby
9 function keys are all customizable.
- Power Requirement: 24 Vdc/ 1.25 A
- Daily Duty Scan (Sheets): 8,000
- Interface: USB 2.0 x 1, USB 2.0 (Host) x 1
- Net Weight: 2.7 Kgs
- Dimensions (W x D x H): 318.7 x 230.7 x 228.3 mm
- Operating System
Windows XP / Vista / 7 / 8 / 10 / 11
macOS 10.12.x/ 10.13.x/ 10.14.x/ 10.15.x/ 11.x/ 12.x/ 13.x/ 14.x/ 15.x
Linux compatibility is only available for system integrators.
- Hardware Requirements
Windows and Mac
2.0 GHz CPU processor or higher[1][2][3]
[1]Windows Recommended: 2.8 GHz Intel® Core™ i5 Processor with 4 CPU Cores or higher
[2]Support Mac INTEL and M1 based processor
[3]Compatibility is not available with PowerPC
- Bundled Software
Plustek DocAction
Plustek DocTWAIN
Plustek MacAction
Plustek ICA
- Built-in OCR
Plustek OCR (For Windows)
Plustek DocOCR (For Mac)
- 1 Year Warranty
